Automatic Rinsing Cup System

1. Includes a 100 Liters tank.
2. Includes a recycle pump. Stainless steel ladder.

Empty Cup UV Sterilizer

1. Sterilization Dosage Reaches : 30,000uw.sec/cm².
2. UV Lamps: PCS High efficiency.
3. UV lights guaranteed 9,000 hours of continuous use.
4. Sterilization Rate of E. coli: 99.99%.
5. Sterilization Rate of Staphylococcus Aureus: 99.99%。
6. Sterilization Rate of Pseudomonas Aeruginosa: 99.99%.
7. No contamination, no residues, no radiation.
8. The housing cover is made of stainless steel.
9. The device has the UV abnormal warning alarm.

Empty Cup De-Dust Vacuum System

1. 2 HP Blower.
2. Vacuum System: Precision filtration system.
3. Maximum Pressure: 21Bar.
4. Temperature withstand up to 79℃.
5. Body Material: SS#304 stainless steel.
6. Dust vacuum capacity of empty cup.
7. Transparent Tape (non-wet & non-sticky): Length 5 mm x Width 5 mm x 3 pcs (max).
8. Paper: Length 5 mm x Width 5 mm x 3 pcs (max).
9. Hair: Under non-electromagnetic of empty cup, hair length below 50 mm x 5 pcs PP Plastic Particles: Length 5mm x Width 5mm x 3pcs(max)

Film UV Sterilizer

1. Sterilization Dosage Reaches : 30,000uw.sec/cm².
2. UV Lamps: PCS High Efficiency.
3. UV lights guaranteed 9,000 hours of continuous use.
4. Sterilization Rate of E. coli: 99.99%.
5. Sterilization Rate of Staphylococcus Aureus: 99.99%.
6. Sterilization Rate of Pseudomonas Aeruginosa: 99.99%.
7. No contamination, no residues, no radiation.
8. The housing cover is made of stainless steel.
9. The device has the UV abnormal warning alarm.

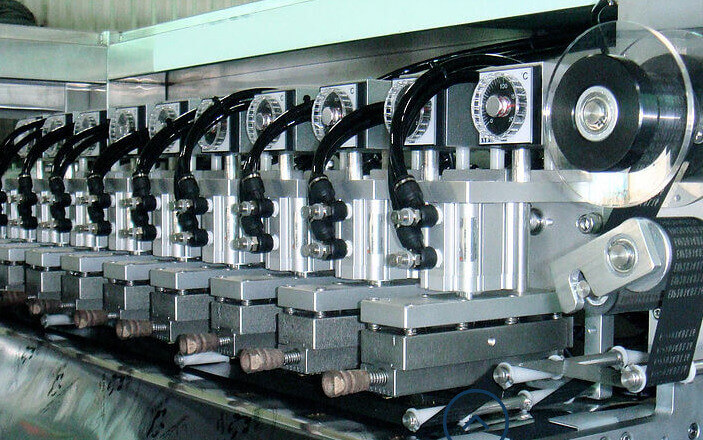

Date Coding Device

1. Printing Heads: pcs.
2. Carbon ribbon.
3. Hot heating the carbon ribbon for printing the expiry date/lot number. Control chassis & frame.

Automatic Lidding System

1. Includes a lids storage device.
2. Mechanism: Pneumatic sucking method to dispensing the lids, to adopt the mechanical cam to trigger the lid dispenser up and down.

Dust Proof Around Whole Machine is Available

1. Start from cup falling system, end before sealing system.
2. Besides the sealing system will be tempered glass.

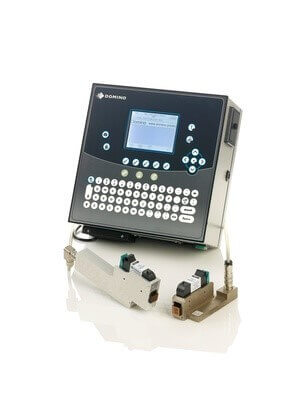

Inkjet Printer

1. To print the mfg date and lot number on the packaging via ink.
2. Frame: Aluminum extrusion.

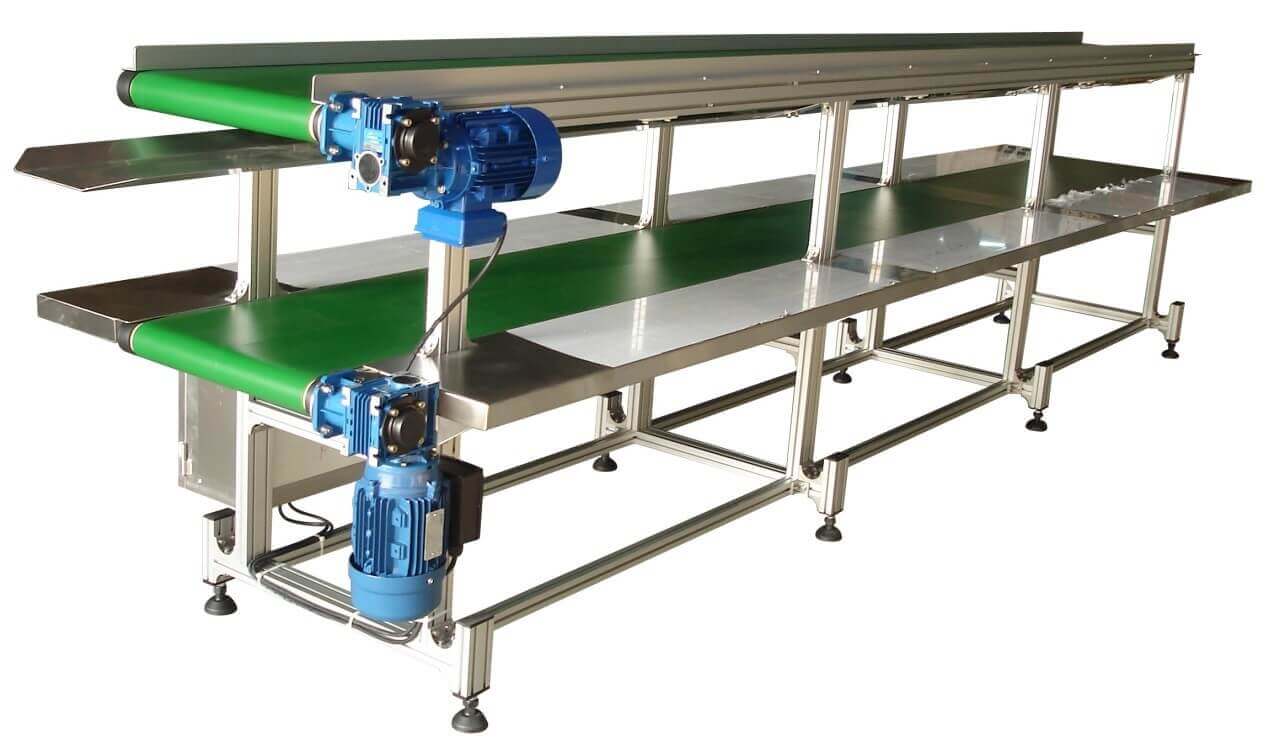

Double Layers Conveyor

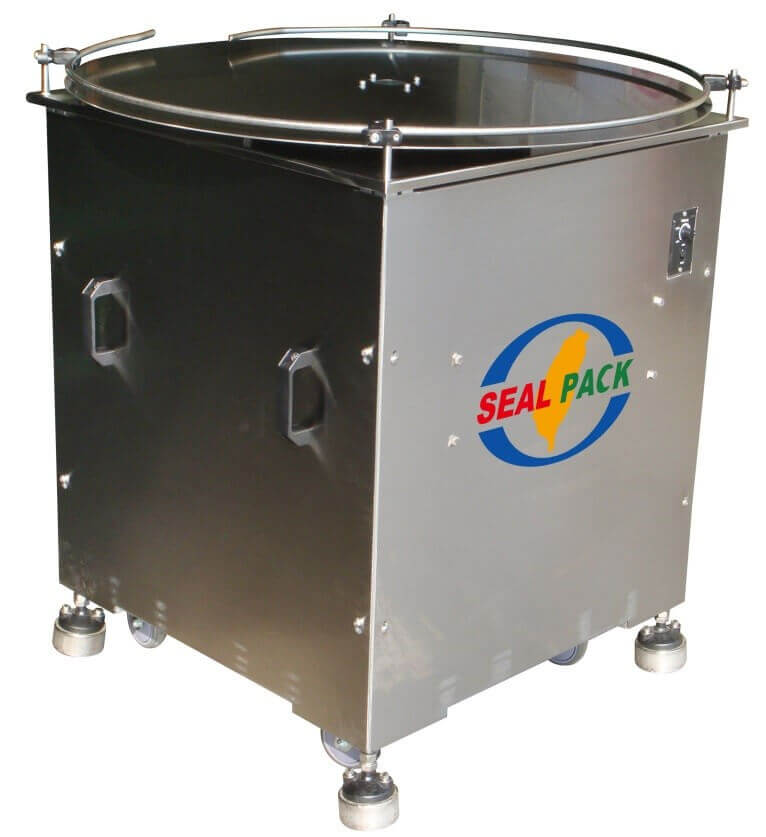

Collection Board

1. Rotating Speed can be adjusted.
2. Can automatically collect the sealed products to facilitate the subsequent packaging.

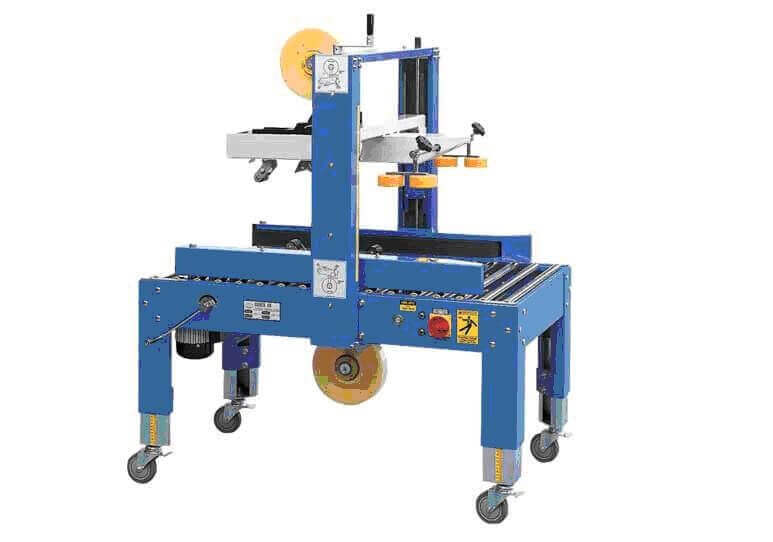

Automatic Taping Machine

1. Machine Dimension: L 1250 mm x W960 mm x H1420 mm.
2. Carton Dimension: L150~∞ x W135~500 x H110~500 mm.
3. Power Supply: Single phase, 110V, 50/60Hz.
4. Conveyor Speed: 20 meters/min
5. Taping Table: H570~770 mm.
6. Motor: Meet CE & UL rules.
7. Non-power roller: SUSΦ32 roller, L1000 x W500 x H570±50 mm.
